MSI MEG Z490 ACE Motherboard (Intel LGA1200)0

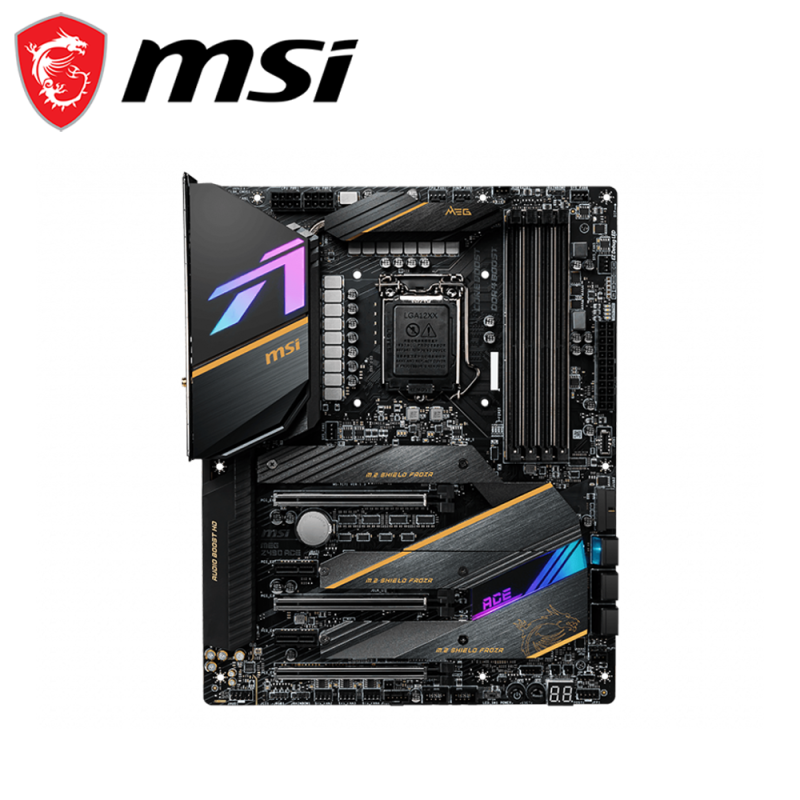

MSI MEG Z490 ACE Motherboard (Intel LGA1200)

(0 Review)

RM1,989.00

ATX Form Factor (30.5 cm x 24.4 cm)
Intel LGA1200 Socket
Intel® Z490 Chipset
4 x DIMM, Max. 128GB, DDR4 2133/2666/2933 MHz
3 x PCIe 3.0 x16 slots
3 Years Warranty by MSI Malaysia

Quantity

Add to compare

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Description
Information

CPU / Processor: Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 Socket
Intel® Z490 Chipset
Memory Slot: 4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/2933 MHz
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non
Storage: 6x SATA 6Gb/s ports
3x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
M2_3 supports up to PCIe 3.0 x4, 2242/ 22
Graphic Card: Supports 2-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology
Operation System: Operating System Support:
Support for Windows® 10 64-bit
Audio & Video: Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
Network / Connectivity Technology: 1x Realtek® 8125B 2.5G LAN controller
1x Intel® I219V 1G LAN controller
Additional Slots: 3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
2x PCIe x1 slots (from PCH)
Interface: Back I/O Ports:
Clear CMOS Button
PS/2 Keyboard / Mouse Port
1G LAN
2.5G LAN
Wi-Fi /Bluetooth Antenna Connectors
HD Audio Connectors
Flash BIOS Button
USB 2.0 Ports
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2x2 20Gb
Dimensions: ATX Form Factor (30.5 cm x 24.4 cm)
Remark: 3 Years Warranty by MSI Malaysia
